How Long Does It Take for an Ice Storage Tank to Fully Freeze2026-06-03
The time required for an ice thermal storage tank to completely freeze is a key factor when planning system operation and optimizing electricity costs. Many users assume this duration is fixed—but in reality, it varies significantly depending on multiple conditions. In most practical applications, the full freezing time typically ranges from 8 to 24 hours, depending on the balance between cooling capacity input and heat gain. Below is a structured breakdown of the key factors that determine freezing time.

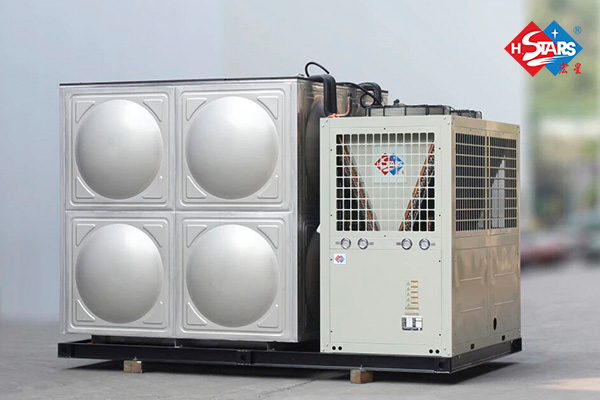

1. Tank Volume and Structure
The size of the storage tank is the most fundamental factor: •Small tanks (10–30 m³): ~8–12 hours •Medium tanks (30–80 m³): ~12–18 hours •Large tanks (80+ m³): ~18–24 hours Tank design also matters: •Cylindrical tanks promote better water circulation, improving freezing efficiency by 10%–15%. •Irregular shapes may cause uneven freezing, increasing total time by 2–3 hours.

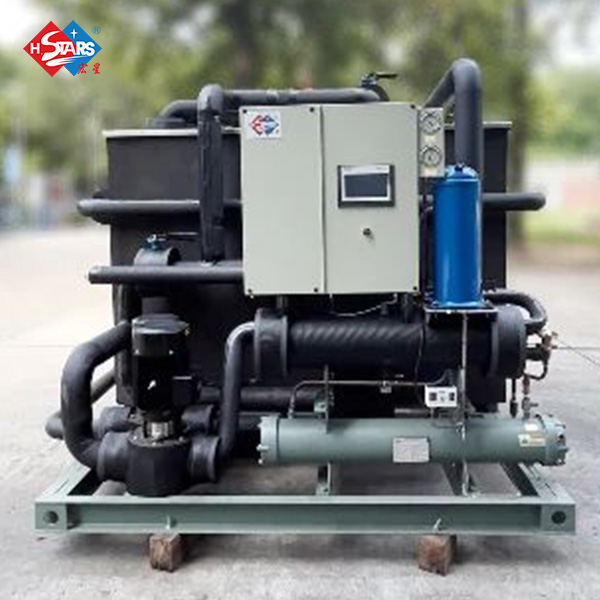

2. Ice-Making Capacity and Operation Mode
The chiller’s ice-making power directly determines how fast cooling energy is delivered: •Typical systems range from 50 kW to 200 kW •Doubling capacity can reduce freezing time by 30%–40% Operation mode also plays a role: •Static ice-making: Slower heat transfer → longer freezing time (+20%–30%) •Dynamic ice-making: Enhanced water circulation → faster freezing
3. Ambient Temperature and Insulation
External conditions significantly affect performance: •Low ambient temperatures (e.g., winter nights below 0°C): → Freezing time reduced by 15%–20% •High ambient temperatures (e.g., summer nights above 25°C): → Freezing time increased by 20%–25% Insulation is equally important: •High-quality insulation (≥50 mm polyurethane) reduces heat loss dramatically •Can shorten freezing time by 2–4 hours •Poor insulation may increase freezing time by 5+ hours
4. Coolant Type and Water Quality
The choice of coolant and water condition also influences freezing: •Ethylene glycol solutions (≈30%) → Increase freezing time slightly (5%–10%) → Prevent freezing damage in pipelines •Water quality oPure or softened water freezes faster (~10%) oImpurities can slow freezing and cause scaling
5. Practical Planning Strategy
Since freezing time depends on multiple variables, it should be estimated using a combined approach: •Match tank size with chiller capacity •Consider local ambient conditions •Align operation with off-peak electricity pricing Typical guideline: •Use 8–12 hours for small systems •Use 18–24 hours for large systems For precise calculations, detailed system parameters and manufacturer support are recommended.
Conclusion
There is no one-size-fits-all answer to how long an ice storage tank takes to freeze. The duration depends on tank volume, system capacity, ambient conditions, insulation quality, and coolant type. By understanding these factors, users can optimize system operation, ensure sufficient cooling supply, and maximize energy savings.
